LADDER TYPE CABLE TRAYS
INFITRA Ladder Type Cable Trays
INFITRA Ladder Type Cable Trays (LTCT) provides maximum load carrying strength used in applications with intermediate support with long spans, for power & control cables.
LTCT’s Are fabricated Out of :
Mild Steel Conforming to IS 1079:1994/513:1994/IS 737:1986
Aluminium Conforming to IS 737:1996 &
Stainless Steel Conforming to Grade 304 & 316
Infitra Ladder Type Cable Trays (LTCT) are fabricated to M.S. conforming to IS 2062:1992.
M.S. Angles are used as Runners and M.S. flats as Rungs. Rung spacing is 250mm length and 300mm for 30000mm length of Cable Trays. Rungs can be provided single / double, as per the customer’s choice.
Stainless Steel Conforming to Grade 304 & 316
LADDER CABLE TYPE TRAYS DETAILS
| Perforation details | Tray Width | Tray Height | Tray Collar | Tray Length | Thickness | Type of Raw Material | Finish |
|---|---|---|---|---|---|---|---|
| Slot Size : 20 x 10mm Width wise: 10 Min Gap Length wise: 20,30 & 40mm c/c gap | 50mm to 1200mm | 20mm to 100mm | 15mm to 25mm | 2500mm to 3000mm | 1.2mm to 3.0mm | Mild Steel (M.S.) or Aluminum or Stainless Steel (S.S.) | Hot dip Galvanized Pre Galvanized sheet (GI) Power Coated Enmel painted |
Note : Customised sizes can also be arranged as per the requirement of the customer

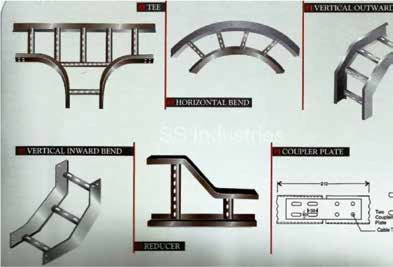

LADDER TYPE CABLE TRAY ACCESSORIES
| Radius: | Types of Bends : | Degrees : |
|---|---|---|
| 300/450/600/1000mm or as per the choice of customer | Horizontal, Vertical (inside/outside) Tees (equal & Un-equal), Crosses, Reducers | 30,45,60,90 for Bends |
