Perforated Cable Trays

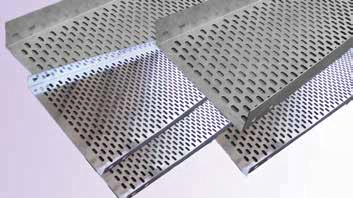

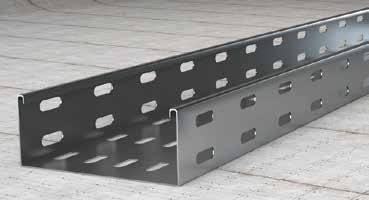

Perforated Cable Tray(PCT)
INFITRA Perforated Cable Trays (PCT) are used for instruments, Control as well as Power Cables. This type of Cable Trays provide ventilation and at the same time protecting the cables.
PCT’s are fabricated Out of :
Mild Steel Conforming to IS 1079:1994 / IS 513:1994
Aluminium Conforming to IS 737:1996
Stainless Steel Conforming to Grade 304 & 316, 202
PERFORATION DETAILS
| Perforation details | Tray Width | Tray Height | Tray Collar | Tray Length | Thickness | Type of Raw Material | Finish |
|---|---|---|---|---|---|---|---|
| Perforation details | 50mm - 1200mm | 20mm - 100mm | 15mm - 25mm | 2500mm - 3000mm | 1.2mm 1.6mm 2.0mm 2.5mm 3.0mm | Mild Steel (M.S.) or Aluminum or Stainless Steel (S.S.) | Hot dip Galvanized Pre Galvanized sheet (GI) Power Coated Enmel painted |
Note : Customised sizes can also be arranged as per the requirement of the customer
PERFORATED CABLE TRAYS ACCESSORIES
| Radius: | Types of Bends : | Degrees : |
|---|---|---|
| 300/450/600/1000mm or as per the choice of customer | Horizontal, Vertical (inside/outside) Tees (equal & Un-equal), Crosses, Reducers | 30,45,60,90 for Bends |
